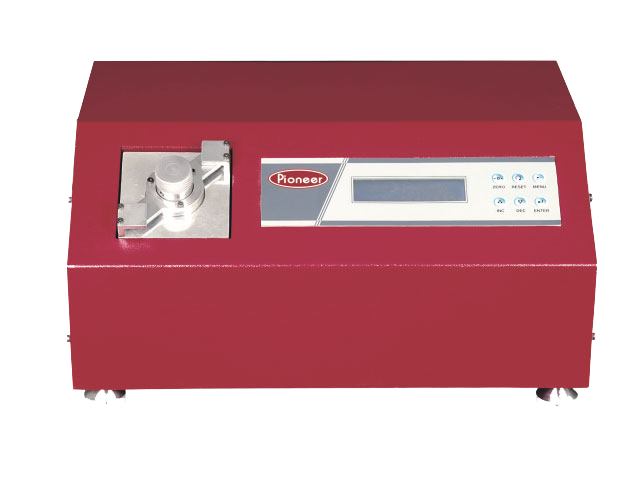

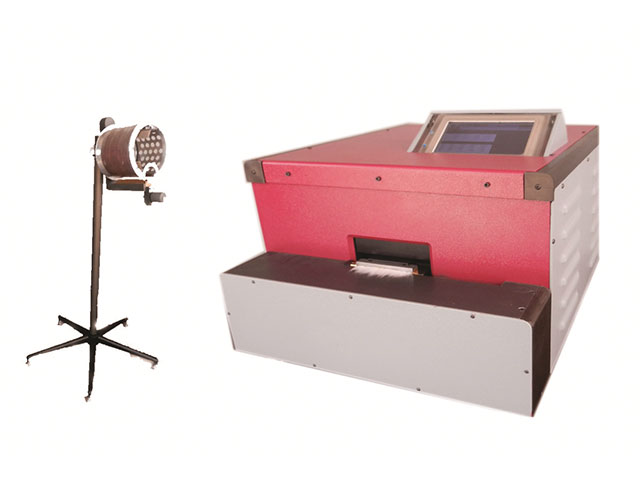

• Operates on ANDROID Platform
• Can test dyed fibres, hard waste opened fibres, melange mixings etc
• Can test short fibres like comber noils, low uniformity fibres like flat strips, droppings, etc
• Specially designed comb with REPLACEABLE NEEDLE SETUP
• Direct Measurement of all length parameters - 2.5% & 50% span lengths, uniformity ratio, Short Fibre Level, etc
• User Selectable Span Length percentage
• Direct measurement of fibre strength in g/tex

• Elongation measurement in percentage basis
• Direct Printer connectivity
• All statistical calculations in built
• Provision to incorporate FIBRE FINENESS MODULE (Micronaire) & COLOUR MODULE to form a complete fibre testing system
• Length only module option available

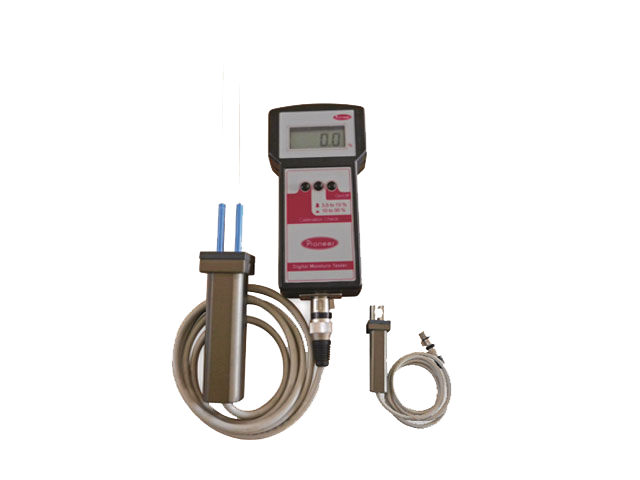

Digital Moisture Tester

• Self calibrating digital instrument
• Upto 30% moisture levels measurable
• Separate Probes for Cotton and Yarn
• User friendly operations
• Compact battery operated hand held model
• Inbuilt Rechargeable Battery

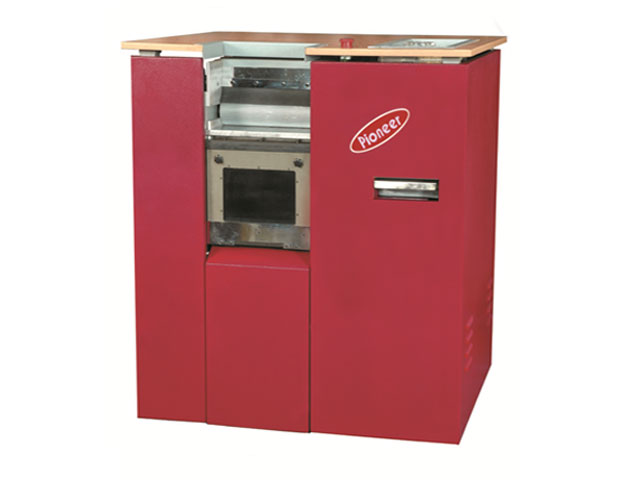

Trash Sorter

• New generation instrument with high quality trash separation with 100 grams sample size
• Can test all types of materials like flat strips, lickerin droppings, comber noils, hard waste opened fibres etc
• Test time reduced by about 40% due to enhanced productivity
• High power saving due to reduced time per sample
• Labour saving due to better productivity
• Operator Friendly Design - Feeding, Lint Collection, Trash Collection and Microdust Collection from the same side
• Improved pneumatics, maintenance free suction design
• No hot air generation
• Plug and play model. No table required
• High quality maintenance free gear box to assist constant feed of cotton

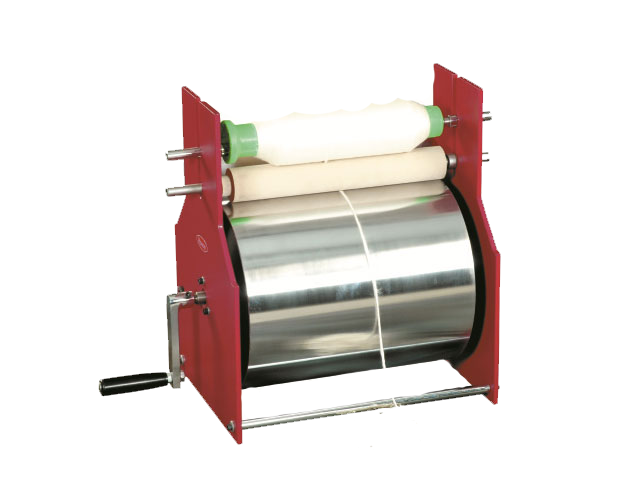

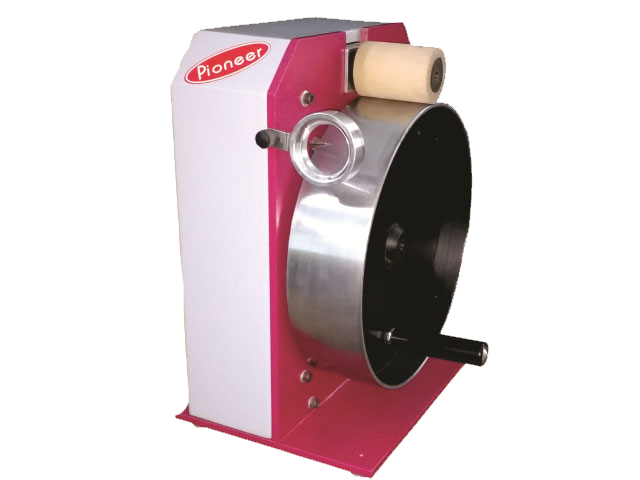

Wrap Block

• 1-yard circumference dynamically balanced heavy duty seamless cylinder
• Can accommodate 18" roving bobbin
• Fully bearing mounted for user comfort
• Adjustable bearing mounted top rubber roller for stretch free operations
• Conventional stretch free roving bobbin mounting
• Digital counter can be supplied as an optional accessory

Sliver Wrap Block

• 1-yard circumference dynamically balanced heavy duty seamless cylinder
• Compact model designed for Sliver only
• Fully bearing mounted for user comfort
• Adjustable bearing mounted top rubber roller for stretch free operations
• Digital Counter can be supplied as an optional accessory

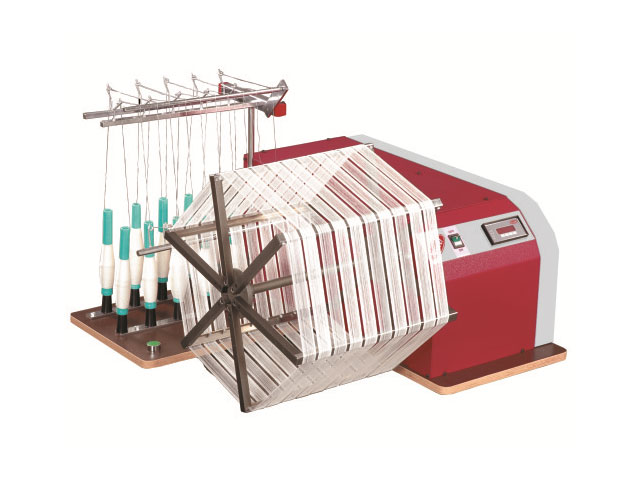

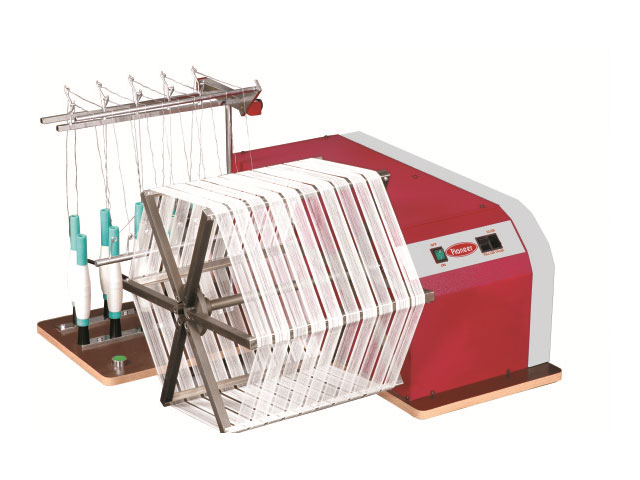

Programmable Wrap Reel

• Fully electronic programmable instrument where number of yards can be programmed by the user in multiples of 1.5 yards
• Dimensionally stable reel - 1.5 yards circumference
• Fail proof high quality brake
• 10 cops mountable standard model (20 cops model available)
• Cone Stand to accommodate 6 to 10 full or baby cones can be supplied as an optional accessory

Standard Wrap Reel

• Electronically controlled motorised instrument
• FULL LEA, HALF LEA & QUARTER LEA OPTIONS
• Dimensionally stable reel - 1.5 yards circumference
• Fail proof high quality brake
• 10 cops mountable standard model (20 cops model available)
• Cone Stand to accommodate 6 to 10 full or baby cones can be supplied as an optional accessory

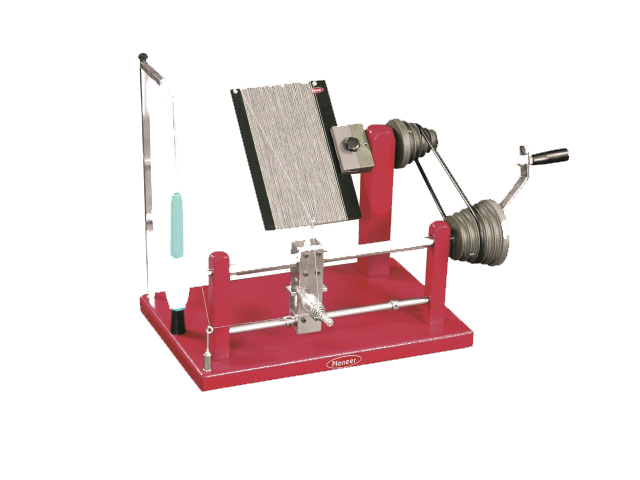

Yarn Appearance Board Winder

• Fully bearing mounted drives for easy operation
• Five imported acrylic boards will be supplied with the instrument

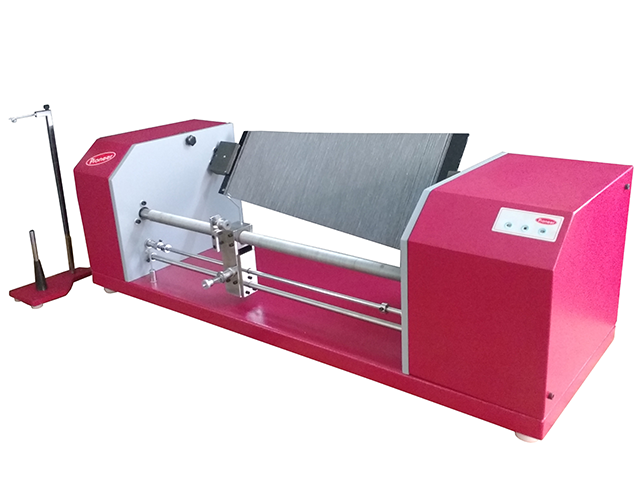

Motorised Board Winder

• ASTM D2200 standard size tapered board winder
• Can accommodate various size boards
• Auto reverse mechanism
• Four imported acrylic tapered boards supplied with the instrument

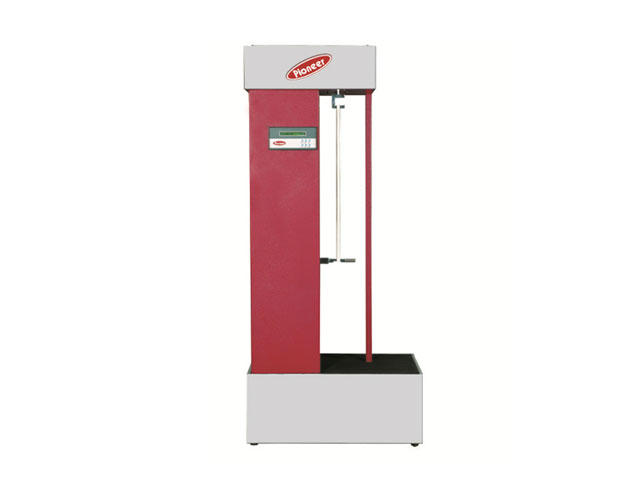

Electronic Lea Strength Tester - 104 E

• Single screw rod standalone model
• 0-500lbs capacity (accuracy 0.1 lbs)
• Metric measures option available
• High Quality - Zero maintenance - Noiseless - Gearbox
• RS232 interface to connect to PC
• Auto calibration
• Auto reversal option available

Electronic Lea Strength Tester - 104

• Single screw rod standalone model
• 0-500lbs capacity (accuracy 0.1 lbs)
• Metric measures option available
• High Quality - Zero maintenance - Noiseless - Gear box
• RS232 interface to connect to PC
• Extra long screw rod – Capable of testing 100% polyester spun yarns
• Auto calibration
• Auto reversal option available

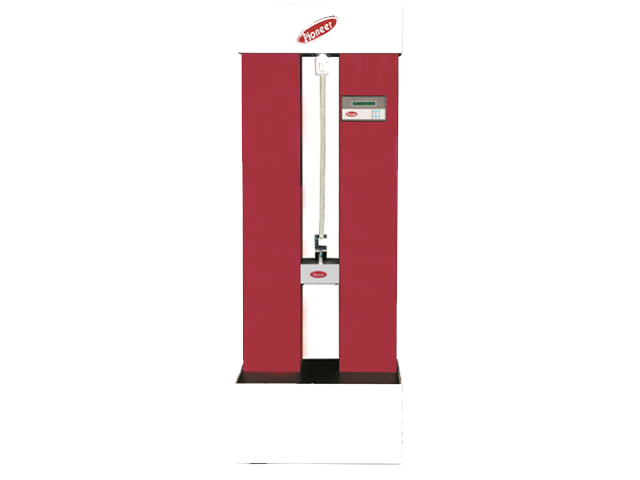

Electronic Lea Strength Tester - 203

• Double screw rod standalone model
• Capacity 0-500lbs, 0-1000lbs, 0-2000lbs (accuracy 0.1 lbs)
• Metric measures option available
• High Quality - Zero maintenance - Noiseless - Gearbox
• RS232 Interface to connect to PC
• Extra long screw rod – Capable of testing 100% polyester spun yarns
• Auto calibration
• Automatic reversal of lower jaw at the end of lea break.

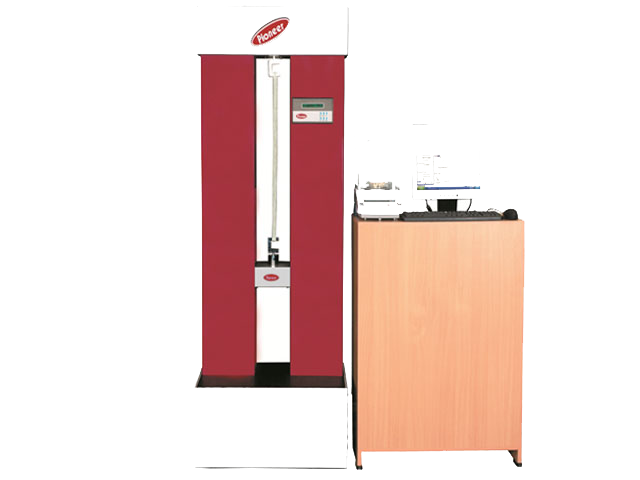

CSP Systems

• Electronic Lea Strength Tester of customer's choice

Module 2

• Electronic Balance with computer connectivity
• Accuracy 10mg or 1 mg or 0.1 mg as per customer's choice

Module 3

• Computer with Two Serial Ports

Module 4

• Pioneer Expert CSP Software
• The Most comprehensive user friendly CSP Software with all necessary modules and ERP Node

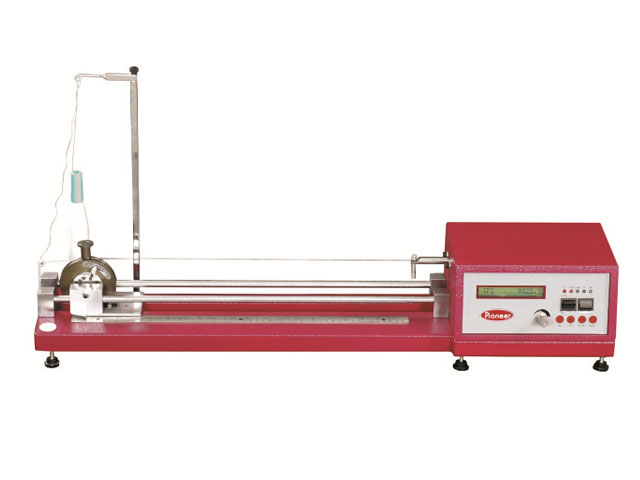

Electronic Twist Tester -302

• Unique centrally calibrated pre-tension arrangement
• TPI & TPM options available
• S & Z Twist can be measured
• Single & Double yarns can be tested

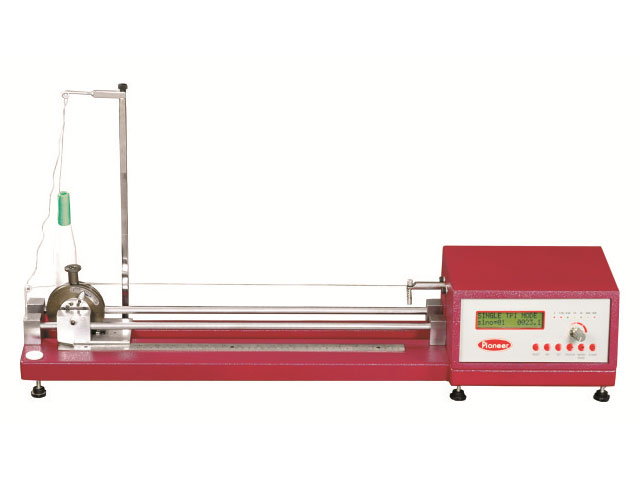

Electronic Twist Tester -306

• Unique centrally calibrated pre-tension arrangement
• TPI & TPM options available
• S & Z Twist can be measured
• Single, Double and OE yarns can be tested
• Built in micro controller to store up to 75 readings and do all statistical calculations
• Direct printer option available
• PC Connectivity available

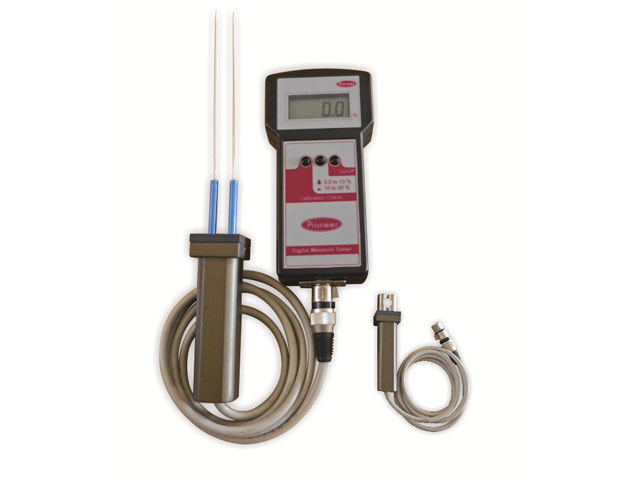

Digital Moisture Tester

• Self calibrating digital instrument
• Upto 30% moisture levels measurable
• Separate Probes for Cotton and Yarn
• User friendly operations
• Compact battery operated hand held model
• Inbuilt Rechargeable Battery

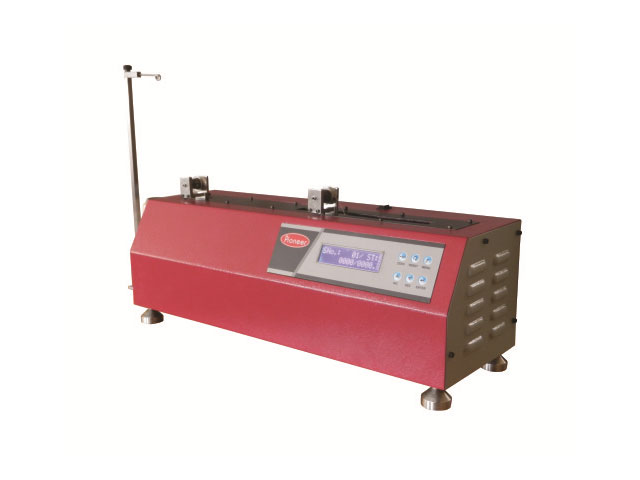

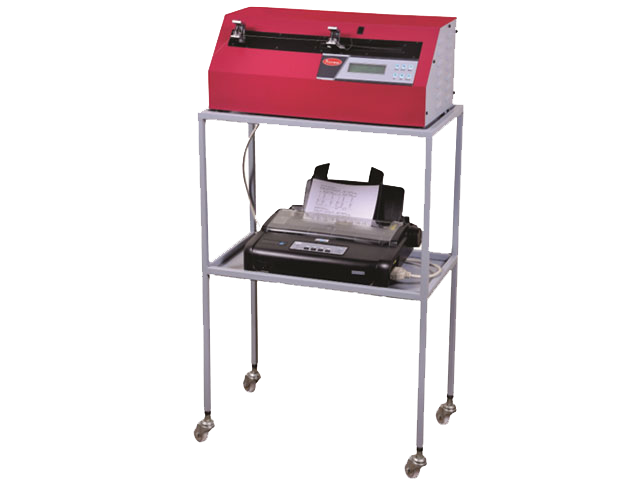

Multipurpose Single Yarn Strength Tester (Splice Strength & Tenacity Tester)

• Indigenously designed import substitute instrument
• Test result parameters include Breaking Force, Elongation, Tenacity and Time to break
• Single yarn tenacity can be viewed in both g/tex and cN/tex
• Elongation can be viewed in % or mm
• In the splice testing mode, the R.S.S (Retained Splice Strength) can be viewed directly
• Direct printer and PC connectivity options available
• Direct printer option & PC connectivity
• Android driven mode also available

Splice Strength Tester

• Indigenously designed import substitute instrument
• Individual values of PARENT YARN & SPLICED YARN
• Average values of PARENT YARN & SPLICED YARN
• Direct display of RSS (Retained Splice Strength)
• Direct printer option & PC connectivity
• Group results option available

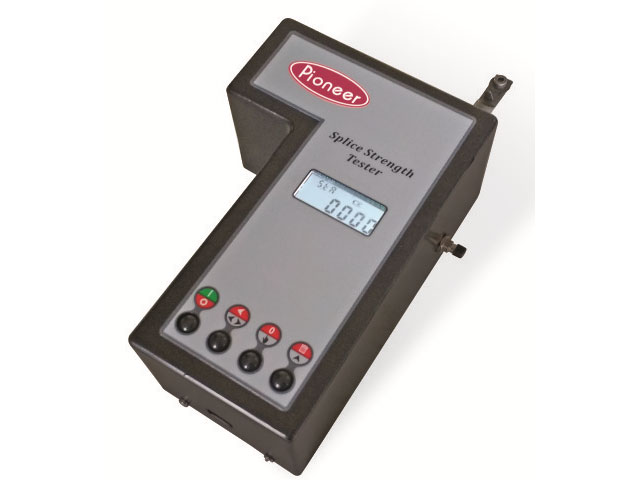

Mini Splice Strength Tester

• Self calibrating digital instrument
• LCD display with Backlight
• Individual values of PARENT YARN & SPLICED YARN
• Average values of PARENT YARN & SPLICED YARN
• Direct display of R.S.S
• Inbuilt Rechargeable Battery
